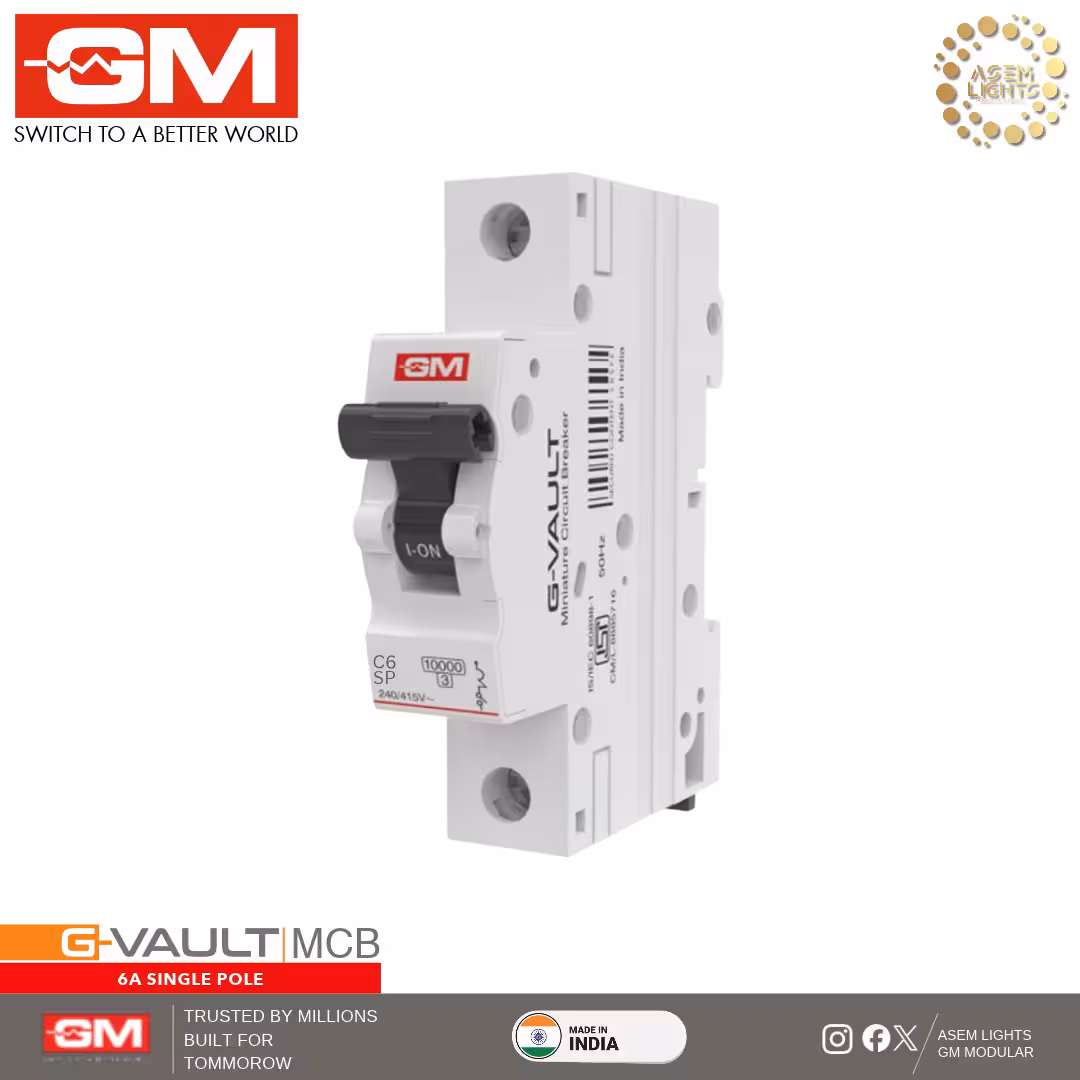

GM 6A SP MCB In Nepal: GVault C Curve | 10kA
Key Features
- ⚡ 6A Rated Current – Designed for electrical circuits requiring 6-ampere protection.
- 🛡️ 10kA Breaking Capacity – Safely interrupts high short-circuit currents.
- 🔌 Single Pole Design – Provides protection for one electrical phase conductor.
- 🔄 C-Curve Tripping – Suitable for circuits with moderate starting currents.
- 🔒 IP20 Protection – Finger-safe terminals help prevent accidental contact with live parts.
- ⚙️ Ergonomic Toggle Design – Premium build with a secure-grip operating knob.
- 🔧 High Termination Capacity – Top and bottom terminals support aluminium conductors in distribution boards.
- ↕️ Line-Load Reversibility – Designed for suitable top or bottom supply connections.
- 🛠️ Easy DIN Rail Installation – Supports convenient removal from a 35mm DIN rail without disturbing adjacent devices.
- ✅ Certified Safety – ISI marked to IS/IEC 60898-1 and CE certified
- 🇮🇳 Made in India
GM 6A SP MCB In Nepal: GVault C Curve | 10kA
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GM |
| Series | G-VAULT |
| Product Type | Miniature Circuit Breaker (MCB) |
| Rated Current | 6A |
| Number of Poles | Single Pole (SP) |
| Tripping Characteristic | C Curve |
| Breaking Capacity | 10kA |
| Breaking Capacity Class | Class 3 |
| Rated Voltage | 240/415V AC (as marked) |
| Frequency | 50Hz (as marked) |
| Protection Rating | IP20 |
| Terminal Protection | Finger-Safe Terminals |
| Termination Capability | High Termination Capacity |
| Line-Load Reversibility | Yes |
| Mounting Type | 35mm DIN Rail |
| Operating Mechanism | Ergonomic Toggle Switch |
| Applicable Standard | IS/IEC 60898-1 |
| Certification | ISI Marked, CE Certified |
| Country of Origin | India |
| Warranty | 3 years |
Applications of GM 6A SP MCB In Nepal: GVault C Curve | 10kA:
- Residential electrical distribution boards
- Commercial electrical installations
- Lighting circuits
- Electrical control panels
- Office electrical systems
- Suitable low-current electrical circuits
